Pratissoli KT20A Series Pumps

Features:

  • GPM= 11.3 or 9.4
  • PSI= 4640 or 5800
  • RPM= 1750 or 1450
  • Bore= 20mm
  • Stroke= 206m
  • HP= 36 EBHP or 37 EBHP
  • Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring
  • top and bottom mounting holes allowing for easy left to right shaft conversion. It has the
  • new generation pressure packing design with an integrated cooling system, orthogonally
  • fitted valves, and splash lubrication.
  • The KT HP Series has high resistance, light alloy crankcase, Stainless Steel manifold,
  • tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel
  • crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickle
  • treated, with solid ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40k
More Details
Interpump HT47 Series Pumps

Features:

  • The Interpump HT47 Series Pumps are specifically designed to handle rigorous duty cycles, high temperatures, and chemicals associated with self-serve car wash applications. Also ideal for carpet cleaning and other high-pressure cleaning applications.
  • The HT line pumps feature "High Tech" packing and "High Temp" valve design.
  • These premium pumps can withstand temperatures up to 185°F and can run dry for several hours
  • The nickel-plated manifold and valve plugs provide corrosion-resistant operation and help reduce damage caused by cavitation.
  • Choose from a variety of different-size pumps based on the application.
Product No. GPM PSI RPM HP Shaft Size Weight
HR4715 3.96 2320 1450 6.20 24 mm 32 lbs
2.64 2320 900 4.15
HT4718 4.75 2320 1450 7.50 24 mm 32 lbs
HT4721 3.14 2320 900 4.99
5.55 2030 1450 7.50 24 mm 16 lbs
4.50 2320 1200 7.0
3.43 2320 950 5.4
HT4723 5.00 2320 1200 7.90 24 mm 32 lbs
3.96 2320 900 6.23





More Details
Pratissoli KT28ASPF Series Pumps

Features:

  • 18.4 gpm
  • 2900 psi
  • 1450 rpm
  • 35 HP POWER END

Additional Features:

Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonality fitted valves, and splash lubrication.

The KT LP Series has a high resistance light alloy crankcase, Spherical cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.

  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft : Female spline T13 16/32DP
  • Flange : SAE B 2-4 F
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg

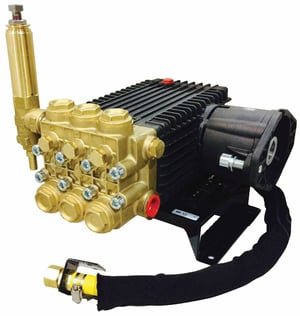

Shown with motor installed

More Details
Pratissoli HF25ASPF Series Pumps

Features:

  • 19.3 GPM
  • 4060 PSI
  • 1000 RPM
  • 50 HP POWER END

Additional Features:

  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonality fitted valves, and splash lubrication.
  • The HF Series has a high resistance light alloy crankcase, 420 stainless steel nickel coated manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft : Female spline T14 12/24DP
  • Flange : SAE C 2-4 F
  • Pump Dimensions: 20in x 14.5in x 9.4in
  • Crankcase Oil Capacity: 3.8L
  • Weight: 132lbs/ 63kg

*Shown with motor installed

More Details
Pratissoli KF28A Series Plunger Pumps

Features of Pratissoli KF28A Series Plunger Pumps:

  • GPM= 24.4
  • PSI= 3050
  • RPM= 1000
  • Bore= 28 mm
  • Stroke= 50 mm
  • HP= 50 EBHP
  • Weight= 190 lbs.

Additional features of Pratissoli KF28A Series Plunger Pumps:

  • With solid shaft. Cast iron pump body with stainless steel manifold.
  • Crankshaft is nitrided, hardened and tempered alloy steel.
  • Forged steel connecting rods with anti-friction bearings.
  • Solid ceramic plungers.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1-1/2 NPT-F
  • Discharge Port Thread: 1 NPT-M
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 526 mm x 367 mm x 253 mm
  • Crankcase Oil Capacity: 3.8 litres

71SS Series- 316 Stainless Steel Manifold and Wetted Parts

Product No. GPM PSI RPM Bore Stroke HP
SS7193 24.5 2900 1000 28mm 50mm 48.3
SS71106 28.0 2900 1000 30mm 50mm 55.0
SS71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SS71170 45.0 1600 900 40mm 50mm 36.0

71SN Series- 420 Stainless Steel Nickel Treated Manifold,  Wetted Parts made of Stainless Steel- No Brass Parts

Product No. GPM PSI RPM Bore Stroke HP
SN7193 24.5 2900 1000 28mm 50mm 48.3
SN1106 28.0 2900 1000 30mm 50mm 55.0
SN71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SN71170 45.0 1600 900 40mm 50mm 36.0

KFM- Light Mud Version

Product No. GPM PSI RPM Bore Stroke HP
KFMB40A 30 1450 600 40mm 50mm 30.0
More Details
Pratissoli KT HP KT20A Series Pumps

Features:

  • 11.3 gpm or 9.4 gpm
  • 4640 psi or 5800 psi
  • 1750 rpm or 1450 rpm
  • 20mm Bore
  • 26mm Stroke
  • HP= 36 EBHP or 37 EBHP

Additional Features:

Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.

The KT HP Series has i high resistance, light alloy crankcase, Stainless Steel manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickel treated, with solid ceramic plungers, and stainless steel valves.

  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg
More Details
Pratissoli KT LP KT28A Series Pumps

Features:

  • 22.2 gpm or 18.4 gpm
  • 2538 psi or 2900 psi
  • 1750 rpm or 1450 rpm
  • 24 mm Bore
  • 28 mm Stroke
  • HP= 38 EBHP or 36 EBHP

Additional Features:

Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.

The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.

  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg
More Details
Pratissoli KTX24ASPF Series Pumps

Features:

  • 13.5 GPM @ 3,625 PSI -  1,450 RPM
  • 16.3 GPM @ 2,900 PSI -  1,750 RPM
  • 35 HP Power End

Additional Features:

Triplex plunger pump, it has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonality fitted valves, and splash lubrication.

The KTX Series has a high resistance light alloy crankcase, 420 stainless steel manifold, Kevlar / graphite run dry seals, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickel treated, with ceramic plungers, stainless steel valves with plastic body.


Max Inlet Pressure:    45 PSI
Max. Fluid Temperature:  185°F
 Inlet Port Thread:  1" NPT-F
Discharge Port Thread:  1/2" NPT-F
Shaft:  Female spline T13 16/32DP
Flange:  SAE B 2-4 F
Crankcase Oil Capacity:  2L (ISO220)
 Pump Dimensions:  15.55" x 13.4" x 8.35"
Weight:  100lbs / 40kg



More Details
Pratissoli LP KTX24A Series Pumps

Features:

  • 13.5 GPM @ 3,625 PSI -  1,450 RPM
  • 16.3 GPM @ 2,900 PSI -  1,750 RPM
  • 35 HP Power End

Additional Features:

Triplex plunger pump, it has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.

The KTX Series has a high resistance light alloy crankcase, 420 stainless steel manifold, Kevlar / graphite run dry seals, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickel treated, with ceramic plungers, stainless steel valves with plastic body.


Max Inlet Pressure:    45 PSI
Max. Fluid Temperature:  185°F
 Inlet Port Thread:  1" NPT-F
Discharge Port Thread:  1/2" NPT-F
Shaft Diameter:  30mm Keyed
Flange:  SAE B 2-4 F
Crankcase Oil Capacity:  2L (ISO220)
 Pump Dimensions:  15.55" x 13.4" x 8.35"
Weight:  100lbs / 40kg



More Details
Pratissoli KTX28ASPF Series Pumps

Features:

  • 18.4 GPM @ 2,900 PSI -  1,450 RPM
  • 22.2 GPM @ 2,540 PSI -  1,750 RPM
  • 35 HP Power End

Additional Features:

Triplex plunger pump, it has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonality fitted valves, and splash lubrication.

The KTX Series has a high resistance light alloy crankcase, 420 stainless steel manifold, Kevlar / graphite run dry seals, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickel treated, with ceramic plungers, stainless steel valves with plastic body


Max Inlet Pressure:    45 PSI
Max. Fluid Temperature:  185°F
 Inlet Port Thread:  1" NPT-F
Discharge Port Thread:  1/2" NPT-F
Shaft:  Female spline T13 16/32DP
Flange:  SAE B 2-4 F
Crankcase Oil Capacity:  2L (ISO220)
 Pump Dimensions:  15.55" x 13.4" x 8.35"
Weight:  100lbs / 40kg



More Details
Pratissoli LP KTX28A Series Pumps

Features:

  • 18.4 GPM @ 2,900 PSI -  1,450 RPM
  • 22.2 GPM @ 2,540 PSI -  1,750 RPM
  • 35 HP Power End

Additional Features:

Triplex plunger pump, it has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.

The KTX Series has a high resistance light alloy crankcase, 420 stainless steel manifold, Kevlar / graphite run dry seals, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrated. The plunger guides are cast iron, nickel treated, with ceramic plungers, stainless steel valves with plastic body.


Max Inlet Pressure:    45 PSI
Max. Fluid Temperature:  185°F
 Inlet Port Thread:  1" NPT-F
Discharge Port Thread:  1/2" NPT-F
Shaft Diameter:  30mm Keyed
Flange:  SAE B 2-4 F
Crankcase Oil Capacity:  2L (ISO220)
 Pump Dimensions:  15.55" x 13.4" x 8.35"
Weight:  100lbs / 40kg



More Details
