Spray Nozzles

Product No.	Description
25600010P	26.45 gpm Maximum
25600015P	34.36 gpm Maximum
25600017P	38.86 gpm Maximum
25600020P	46.63 gpm Maximum
25600024P	57.0 gpm Maximum
25600030P	79.3 gpm Maximum

More Details

PA M21E Electric Barrel Cleaner

3,200 psi Max. Pressure
5.5 gpm Max Flow
195° F Max. Temperature
AR1A-M22 Inlet
Nozzle Type: 2 x M4 (Included*)
1.57" (40 mm) Minimum Overall Coverage

Product No.	Length	Voltage
25430000P	21.7″	230 VAC
25430060P	21.7″	115 VAC

More Details

PA MI63 Hydraulic Tank Cleaner

2,000 psi Max. Pressure
6.6 gpm Max Flow
195° F Max. Temperature
3/4" BSP-F Inlet
Nozzle Type: 4 x M4 ( Not Included*)
1.8" (45 mm) Minimum Overall Coverage

Product No.	Length
25460024P	35.4

More Details

JTI - Non-Rotating Sewer Jetting Nozzles with Insert - 7 250 PSI

Features:

7 250 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size*	Jet Position – Forward \| Back
JTI1/4*	1/4″	.98″	060, 080, 12, 15, 20	1 – 6
JTI1/4NF*	1/4″	.98″	060, 080, 12, 15, 20	0 – 6
JTI3/8*	3/8″	1.18″	060, 080, 12, 15, 20	1 – 4
JTI3/8NF*	3/8″	1.18″	060, 080, 12, 15, 20	0 – 4
JTI3/8C*	3/8″	.98″	060, 080, 12, 15, 20	1 – 6
JTI3/8CNF*	3/8″	.98″	060, 080, 12, 15, 20	0 – 6
JTI1/2*	1/2″	1.18″	060, 080, 12, 15, 20	1 – 6
JTI1/2NF*	1/2″	1.18″	060, 080, 12, 15, 20	0 – 6
JTI3/4*	3/4″	2.76″	40	1 – 6
JTI3/4NF*	4/4″	2.76″	40	0 – 6
JTI1*	1″	2.95″	75	1 – 6
JTI1NF*	1″	2.95″	75	0 – 6

More Details

JTHM - Non-Rotating Hydro Mole Jetting Nozzles - 7 250 PSI

Features:

7 250 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size	Jet Position – Forward \| Back
JTHM1/4	1/4″	.86″	070	4 – 3

More Details

JTM - Non-Rotating Milling Type Jetting Nozzle - 5 075 PSI

Features:

5 075 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size*	Jet Position – Forward \| Back
JTM1/4*	1/4″	.98″	040, 050	3 – 4
JTM1/4*	1/4″	.98″	060, 070, 080, 10, 12, 15, 20	4 – 4
JTM3/8*	3/8″	1.18″	040	3 – 6
JTM3/8*	3/8″	1.18″	070, 080, 10, 12, 15, 20, 25, 27	4 – 6
JTM1/2*	1/2″	.98″	10, 12, 15, 20, 25, 31	4 – 6
JTM3/4*	3/4″	.98″	40	4 – 6
JTM1*	1″	1.18″	75	4 – 9

More Details

JTPR - Predator Jetting Nozzles - 7 250 PSI

Features:

7 250 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size	Jet Position – Forward \| Back
JTPR1/4	1/4″	.86″	045	1 – 3

More Details

JTRR - Root Rat Jetting Nozzles

Features:

Product No.	Thread NPT-F	OD	Orifice Size	Jet Position – Forward \| Back
JTRR1/4	1/4″	.86″	060	1 – 6

More Details

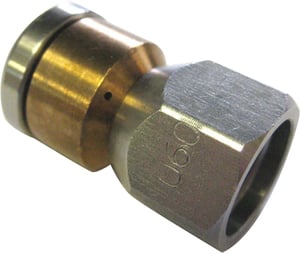

JTR - Rotating Sewer Jetting Nozzles - 4 000 PSI

Features:

4 000 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size*	Jet Position – Forward \| Back \| Side
JTR1/8*	1/8″	.74	045, 050, 055, 060, 070, 080	0 – 3 – 0
JTR1/4*	1/4″	.74	040, 045, 050, 055, 060, 070, 080	0 – 3 – 0
JTR1/4S*	1/4″	.74	055, 090	0 – 0 – 2
JTR1/4S*	1/4″	.74	12	1 – 0 – 2
JTI3/8*	3/8″	.94	0640, 045, 050, 060, 080, 10, 12, 15, 20	0 – 3 – 0
JTI3/8F*	3/8″	.94	10, 12, 15, 18	1 – 3 – 0

More Details

JTV - Vibrating/Rotating Jetting Nozzles - 3 625 PSI

Vibrating/Rotating Sewer Jetting Nozzles 3 625 psi

3 625 psi Max. Pressure

Product No.	Thread NPT-F	OD	Orifice Size*	Jet Position – Forward \| Back
JTV1/4*	1/4″	1.14	60	3 – 4
JTV1/2*	1/2″	1.57	20	3 – 5
JTV3/4*	3/4″	2.36	40	3 – 6
JTV1*	1″	3.11	75	3 – 8

More Details

TND - TURBO Nozzle Driver

Rotating Nozzle Attaches to Front of Driver

Product No.	Inlet	Outlet	OD	Rated Pressure
TND1/4	1/4″ NPT-F	1/4″ NPT-M	1.125	5,075 psi
TND3/8	3/8″ NPT-F	1/4″ NPT-M	1.1875	5,075 psi
TND1/2	1/2″ NPT-F	1/4″ NPT-M	1.4375	7,250 psi

More Details

DMND - Dual Meg Nozzle Driver

6,000 psi
Brass Body
Use with two 1/4" M Nozzles

Product No.	Inlet	Outlet	OD	Max. Flow
DMND1/4	1/4″ NPT-F	2 x 1/4″ NPT-F	2.83	21.0 gpm

More Details

Interpump Rotoclean Rotating Nozzle

Features:

1 500 psi Max. Pressure
140° F Max. Temperature
1/4" BSP-F inlet
8.5 oz Weight

Product No.	Size
ROTOCLEAN1.40	04
ROTOCLEAN1.45	045

More Details

Dynablast X2 Hydro Excavating Nozzle

Features:

1,000 PSI Min. Inlet Pressure
3,000 PSI Max Inlet Pressure
82°C / 180°F Max. Temperature
Tungsten Carbide Nozze & Seat
303 Stainless Steel Nozzle Body
High Density Polywthylene ATEX Compliant
Balanced Nozzle
20° Spray Angle
1/2" NPT-F Inlet
Weight: 1.10lb

Product No.	Repair Kit	Replacement Cover	Nozzle Size	Size - IN	Size - MM	Flow @ 1000PSI	Flow @ 1500PSI	Flow @ 2000PSI	Flow @ 2500PSI	Flow @ 3000PSI
URHX204	25106424P	URHX2CVR	4	0.050	1.27	2.00GPM	2.45GPM	2.83GPM	3.16GPM	3.46GPM
URHX206	25106624P	URHX2CVR	6	0.062	1.57	3.00GPM	3.67GPM	4.24GPM	4.74GPM	5.20GPM
URHX208	25106824P	URHX2CVR	8	0.072	1.83	4.00GPM	4.90GPM	5.66GPM	6.32GPM	6.93GPM
URHX210	25106024P	URHX2CVR	10	0.080	2.03	5.00GPM	6.12GPM	7.07GPM	7.91GPM	8.66GPM
URHX212	25106224P	URHX2CVR	12	0.087	2.21	6.00GPM	7.35GPM	8.49GPM	9.49GPM	10.39GPM

CALL FOR PRICING!

Amir Youwakim: 905 567 6590 ext 261 | John Thomson: 905 867 4642

More Details

PA High Pressure Nozzles 14 500 psi

Features:

14,500 psi Max. Pressure
1/8" or 1/4" MPT
0 degree spray angle
Stainless steel body
Nozzle Insert : Sapphire

Product No.	Description
PW1/4M0002SPH	1/4 npt, 00 Degree Spray Angle – 02 Orifice
PW1/4M00031SPH	1/4 npt, 00 Degree Spray Angle – 031 Orifice
PW1/4M00042SPH	1/4 npt, 00 Degree Spray Angle – 042 Orifice
PW1/4M00048SPH	1/4 npt, 00 Degree Spray Angle – 048 Orifice
PW1/4M00062SPH	1/4 npt, 00 Degree Spray Angle – 062 Orifice
PW1/4M00068SPH	1/4 npt, 00 Degree Spray Angle – 068 Orifice
PW1/8M0002SPH	1/8 npt, 00 Degree Spray Angle – 02 Orifice
PW1/8M0003SPH	1/8 npt, 00 Degree Spray Angle – 03 Orifice
PW1/8M0004SPH	1/8 npt, 00 Degree Spray Angle – 04 Orifice
PW1/8M00054SPH	1/8 npt, 00 Degree Spray Angle – 054 Orifice
PW1/8M0006SPH	1/8 npt, 00 Degree Spray Angle – 06 Orifice

More Details

PA 7250 PSI High Pressure Nozzles

Features:

7,250 psi Max. Pressure
1/8" or 1/4" mpt
40 degree spray angle
Stainless Steel Body
Nozzle Insert : Tungsten Carbide

Product No.	Description
PW1/M4002TC	1/4 npt, 40 Degree Spray Angle – 02 Orifice
PW1/4M4003TC	1/4 npt, 40 Degree Spray Angle – 03 Orifice
PW1/4M40038TC	1/4 npt, 40 Degree Spray Angle – 038 Orifice
PW1/4M40049TC	1/4 npt, 40 Degree Spray Angle – 049 Orifice
PW1/4M40055TC	1/4 npt, 40 Degree Spray Angle – 055 Orifice
PW1/4M002TC	1/4 npt4, 40 Degree Spray Angle – 02 Orifice
PW1/8M0003TC	1/8 npt, 40 Degree Spray Angle – 03 Orifice
PW1/8M00038TC	1/8 npt, 40 Degree Spray Angle – 038 Orifice
PW1/8M00049TC	1/8 npt, 40 Degree Spray Angle – 049 Orifice
PW1/8M00055TC	1/8 npt, 40 Degree Spray Angle – 055 Orifice

More Details

PA TS12 Stainless Steel Sandblasting Nozzle

The PA TS12 Stainless Steel Sandblasting Nozzle has a stainless steel body with tungsten carbide orifice. High pressure spray nozzle not included.

The PA TS12 Stainless Steel Sandblasting Nozzle features:

7 250 psi Max. Pressure
21.0 gpm Max. Flow
195° F Max. Temperature
1/4" BSP-F Inlet
1/4" NPT Connector
31.4 oz. Weight

Product No.	Description
SBHS80012	TS12 Head
25030020P	Adjustable Probe

More Details

PA TS8250 Sand Blasting Kit

The PA TS8250 Sand Blasting Kit features:

3 650 psi Max. Pressure
10.5 gpm Max. Flow
195° F Max. Temperature
1/4" BSP-F Inlet
Tungsten Carbide
Includes Sandpoker

Product No.	Description
TS8250	Sandblasting kit with 04 size nozzle

More Details

SBK5500 Sand Blasting Kit

The SBK5500 Sand Blasting Kit features:

8.0 gpm Max. Flow
Tungsten Carbide Nozzle
5 500 psi Max. Pressure
1/4" BSP-F Inlet
Includes 21" Steel Probe & 25' Suction Hose with 1/4" QC

Product No.	Description
SBK5500	Kit – (high pressure nozzle not included)

More Details

PA ZDRAI - Drain Cleaning Nozzles

PA Drain Cleaning Nozzles

Among the PA Drain Cleaning Nozzles are the ZDRAIREG; which its head rotates to adjust pump flow & pressure rating, fitting inside a drain or tube with a minimum 1-1/8" diameter. And the ZDRAIMIN nozzles, which are non-adjustable and must be sized to pump.

PA Drain Cleaning Nozzles features :

3 000 - 3 500 psi Max. Pressure
5.1 - 15.8 gpm Max. Flow
Stainless Steel

Product No.	Pressure	Inlet Type
ZDRAIREG	3 000 psi	3/8″ BSP-M – Adjustable Flow
ZDRAIMIN	3 500 psi	1/8″ BSP-F
ZDRAIMIN2	3 000 psi	1/8″ BSP-F

More Details

High Pressure Drain Cleaning Nozzle Kits

High Pressure Drain Cleaning Nozzle Kits feature:

Quality nozzles for use in sewer and drain cleaning applications
Heat treated 416SS construction
10 000 psi Rated Pressure
1/4" NPT connection
Available in 040, 050 and 060 orifice sizes.
4 nozzles included in each kit
Other connection sizes available upon request.

The High Pressure Drain Cleaning Nozzle Kits include:

Thruster - provides maximum pulling power with a forward jet to bore through plugged lines.
Monster Mole - general purpose dual angle nozzle combining both thrust and flush forces for superior pulling and cleaning.
Flusher - 45° flushing angle for good pulling power. Good general purpose cleaning nozzle
De-Icer / Degreaser - 25° thrusting angle with 3 forward jets for lossening hard grease and ice. Good for use in forward.

Product No.	Orifice Size	Description
JTNK4P1/404	04	1/4″ 4-pack Jetting Nozzle Kit
JTNK4P1/405	05	1/4″ 4-pack Jetting Nozzle Kit
JTNK4P1/406	06	1/4″ 4-pack Jetting Nozzle Kit

More Details

Button Nose "BN" Drain Cleaning Nozzles 10 000 psi

The Button Nose "BN" Drain Cleaning Nozzles 10 000 psi is well suited for general cleaning applications. Its short body and smooth round nose make it ideal for tight turns in P-Traps and elbows.

Button Nose "BN" Drain Cleaning Nozzles 10 000 psi feature:

10 000 psi Max. Pressure
Heat treated 416SS construction
Available in 1/8", 1/4", 3/8", 1/2". 1" NPT connection
Quality nozzles for use in sewer and drain cleaning applications
Configurations : Thruster mole (TM), Penetrator mole (PM), Flusher mole (FM)
Sweeper mole (SM). Corner mole (CM), Monster mole (MM), Degreaser / De-icer (DD)
Contact us for more details on these configurations

Product No.	Description
BN1/8	1/8″ NPT
BN1/4	1/4″ NPT
BN3/8	3/8″ NPT
BN1/2	1/2″ NPT
BN1	1″ NPT

More Details

JT - Non-Rotating Sewer Jetting Nozzles 4 200 psi

Non-Rotating Sewer Jetting Nozzles 4 200 psi feature:

4 200 psi Max. Pressure
Available in 1/4" NPT-F or 3/8" NPT-F Inlet connection
Orifice size is engraved on the nozzle
Corrosion resistant stainless steel
Physically small for cornering ability

Product No.	Thread NPT-F	OD	Orifice Size*	Jet Position – Forward \| Back
JT1/8*	1/8″	.59	035, 050, 055, 060, 065, 075, 10, 12	1 – 3
JT1/8NF*	1/4″	.75	035, 040, 045, 060, 090	0 – 3
JT1/4*	1/4″	.75	040, 045, 055, 080, 090, 10, 12	1 – 3
JT1/4*	1/4″	.75	060, 075, 11	1 – 4
JT1/4*	1/4″	.75	11	1 – 5
JT1/4NF*	1/4″	.75	035, 040, 045, 050, 055, 060, 090, 12	0 – 3
JT3/8*	3/8″	.92	055, 085	1 – 3
JT3/8*	3/8″	.92	040, 12, 14, 15, 20	1 – 4
JT3/8*	3/8″	.92	070	0 – 4

More Details

Jet Nose "JN" Drain Cleaning Nozzles 10 000 psi

The Jet Nose "JN" Drain Cleaning Nozzles 10 000 psi is standard in the industrial tube and pipe cleaning industry. Its longer length and 45° angle nose acts as a piercing rod in sewer and drain cleaning applications. It is excellent for penetrating heavy grease, soap, or even ice filled lines.

Jet Nose "JN" Drain Cleaning Nozzles 10 000 psi feature :

Quality nozzles for use in sewer and drain cleaning applications
10 000 psi Rated Pressure
Heat treated 416SS construction Stainless Steel
Available in 1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT connection
Configurations : RAM (RM or Offset OS), Flusher mole (FM)
Sweeper mole (SM). Degreaser/De-icer (DD)
Contact us for more details on these configurations

Product No.	Description
JN1/8	1/8″ NPT-F
JN1/4	1/4″ NPT-F
JN3/8	3/8″ NPT-F
JN1/2	1/2″ NPT-F

More Details

PA MI63 Hydraulic Driven Tank Cleaner

The PA MI63 Hydraulic Driven Tank Cleaners are custom built to ensure performance satisfaction. PA offers a wide variety of quality tank washing nozzles suitable for a wide range of applications.

The PA MI63 Hydraulic Driven Tank Cleaner features:

2 000 psi Max. Pressure
195° F Max. Temperature
3/4" BSP-F Inlet
Minimum Overall Coverage 1.8" (45 mm)
Nozzle Type - 4 x M4 *

Product No.	Length	GPM
25460024P	35.4″	6.6 gpm

More Details

PA M63E / M63P Self-propelled Tank Cleaner

The PA M63E / M63P Self-propelled Tank Cleaners are custom built to ensure performance satisfaction. PA offers a wide variety of quality Tank Washing Nozzles suitable for a wide range of applications.

The PA M63E / M63P Self-propelled Tank Cleaner features:

2 000 psi Max. Pressure
195° F Max. Temperature
3/4" BSP-F Inlet
Minimum Overall Coverage 1.8" (45 mm)
Nozzle Type: 4 x M4 *

Product No.	Propulsion	Length	GPM
25450004P	Electric (24 V AC Max. Voltage)	35.4″	10.5 gpm
25452004P	Air-Driven	35.4″	10.5 gpm
25452604P	Air-Driven	25.6″	10.5 gpm

More Details

PA A42FR2 Tank Cleaning Head

The PA A42FR2 Tank Cleaning Head is custom built to ensure performance satisfaction. PA offers a wide variety of quality tank washing nozzles suitable for a wide range of applications.

The PA A42FR2 Tank Cleaning Head features:

580 - 2 000 psi Max. Pressure
5.3 - 16.0 gpm Max. Flow
195° F Max. Temperature
Stainless Steel and Anodized Aluminium Construction
Nozzle Type: 3.25" NPT *
Ideal for the car wash industry

Product No.	Max. Size
25515020P	5.3 gpm
25515026P	8.0 gpm
25515040P	10.6 gpm
25515033P	16.0 gpm

More Details

PA AR80 Self-Propelled Tank Cleaner

The PA AR80 Self-Propelled Tank Cleaner is custom built to ensure performance satisfaction. PA offers a wide variety of quality tank washing nozzles suitable for a wide range of applications.

The PA AR80 Self-Propelled Tank Cleaner features:

2 000 psi Max. Pressure
195° F Max. Temperature
3/4" BSP-F Inlet
Nozzle Type: 4" x 1/4" NPT *
303 Stainless Steel Construction
20 Min. - 1 Max. rpm
6.4" (165 mm) Minimum Overall Coverage

Product No.	Description
25482020P	6.6 gpm Maximum
25482025P	8.0 gpm Maximum
25482030P	10.5 gpm Maximum
25482040P	13.2 gpm Maximum
25482050P	17.2 gpm Maximum
25482060P	21.0 gpm Maximum
25482070P	26.5 gpm Maximum
25482080P	29.0 gpm Maximum
25482090P	31.7 gpm Maximum
25482200P	Protection cage for A80R (fixing screws & nuts included)

More Details

PWQC15045 Nozzle

Features of PWQC15045 Nozzle:

5000 psi Rated Pressure
Hardened stainless steel orifice in a stainless steel housing
Choice of 1/4? NPT, 1/8? NPT or QC connection
QC nozzles are color coded based on spray angle
Available in 0° (red), 15° (yellow), 25° (green), 40° (white) spray angle

More Details

PWQC0045 Nozzle

Features of PWQC0045 Nozzle:

5000 psi Rated Pressure
Hardened stainless steel orifice in a stainless steel housing
Choice of 1/4? NPT, 1/8? NPT or QC connection
QC nozzles are color coded based on spray angle
Available in 0° (red), 15° (yellow), 25° (green), 40° (white) spray angle

More Details

PWQC25045 Nozzle

Features:

5000 psi Rated Pressure
Hardened stainless steel orifice in a stainless steel housing
Choice of 1/4? NPT, 1/8? NPT or QC connection
QC nozzles are color coded based on spray angle
Available in 0° (red), 15° (yellow), 25° (green), 40° (white) spray angle

More Details

PWQC25040 Nozzle

Features:

5000 psi Rated Pressure
Hardened stainless steel orifice in a stainless steel housing
Choice of 1/4? NPT, 1/8? NPT or QC connection
QC nozzles are color coded based on spray angle
Available in 0° (red), 15° (yellow), 25° (green), 40° (white) spray angle

More Details

PA UR25 Rotating Nozzle

Features:

3650 psi Rated Pressure
212°F Max. Temperature
1/4? BSP-F inlet
Minimum operating pressure 1150 psi
Uses the same repair kits as the UR16 & UR32 nozzles

More Details

PA UR32 Rotating Nozzle

Features:

5100 psi Rated Pressure
212°F Max. Temperature
1/4? BSP-F inlet
Minimum operating pressure 2600 psi
Uses the same repair kits as the UR16 & UR25 nozzles

More Details

PA UR16 Rotating Nozzle

Features of the PA UR16 Rotating Nozzle:

2300 psi Rated Pressure
Up to 6.1 gpm
212°F Max. Temperature
1/4? BSP-F inlet
Minimum operating pressure 435 psi
Uses the same repair kits as the UR25 & UR32 nozzles

More Details

1/4", 1/8" and QC Nozzles

Features:

5 000 psi Rated Pressure
Hardened stainless steel orifice in a stainless steel housing
Choice of 1/4" NPT, 1/8" NPT or QC connection
QC nozzles are color coded based on spray angle
Available in 0° (red), 15° (yellow), 25° (green), 40° (white) spray angle

ORDERING INFORMATION
PW1/4M I Connection Type		25 I Spray Angle		04 I Orifice Size


				(See chart below for performance specifications)
PW1/4M	1/4″ NPT connection	15	15°
PW1/4W	1/4″ FPT connection	25	25°
PW1/8M	1/8″ NPT connection	40	40°

More Details

1/4" Washjet Nozzles -Large Orifice

Features:

4 000 psi Max. Pressure
1/4" NPT-M Inlet
Hardened Stainless Steel Orifice in a Stainless Steel Housing
Minimum Order Quantities may apply to Non-Stock Sizes
For other sizes please contact DynaBlast

Product No.	Material	Angle	Orifice Size
PW1/4MH00 …	Stainless Steel	00°	12, 15, 20, 30, 40
PW1/4MH05 …	Stainless Steel	05°	20
PW1/4MH15 …	Stainless Steel	15°	11, 12, 15, 20, 30
PW1/4M …	Stainless Steel	25°	01
PW1/4MH25 …	Stainless Steel	25°	12, 15, 20, 30, 40
PW1/4MH40 …	Stainless Steel	40°	12, 15, 20, 30, 40
PW1/4M65 …	Stainless Steel	65°	02, 03, 04, 045, 05, 055, 06, 08
PW1/4MH65 …	Stainless Steel	65°	10, 15, 20

More Details

Chemical / Soap Nozzles

Features:

Available in 1/4", 1/8" or QC connection
Brass or Stainless Steel
Available in 15°, 25°, and 65° Spray Angle

Product No.	Material	Angle	Orifice Size	Connection
PWCH1/4M1550SS	Stainless Steel	15°	50	1/4″ NPT
PWCHQC1550	Brass	15°	50	QC
PWCH1/4M6540	Brass	65°	40	1/4″ NPT
PWCHQC6540	Brass	65°	40	QC
PWCH1/4M2540	Brass	65°	40	1/8″ NPT
PWCH1/4M2540	Brass	25°	40	1/4″ NPT
PWCHQC2540	Brass	25°	40	QC
PWCH1/8M2540	Brass	25°	40</t

More Details

1/8" to 2" Spray Nozzles

Features:

500 psi Max. Pressure
1/8" - 2" NPT-M
0° - 110° Spray Angle
Available in Brass or Stainless Steel

ORDERING INFORMATION
1/4VVJB	25	04
I	I	I
Nozzle Type	Spray Angle	Capacity Size

Product No.	Description
1/4UJB … … …	Medium Capacity Brass 1/4″ NPT-M
1/4USJB … … …	Medium Capacity SS 1/4″ NPT-M
1/4VVJB … … …	Small Capacity Brass 1/4″ NPT-M
1/4VVSJB … … …	Small Capacity SS 1/4″ NPT-M
1/8UJB … … …	Medium Capacity SS 1/8″ NPT-M
1/8USJB … … …	Medium Capacity Brass 1/8″ NPT-M
1/8VVJB … … …	Small Capacity Brass 1/8″ NPT-M
1/8VVSJB … … …	Small Capacity SS 1/8″ NPT-M

More Details

Interpump Multireg 99 High-Low Nozzle

The Interpump Multireg 99 High-Low Nozzle pressure is selected by push-pull action. It features an adjustable spray pattern of 0° (solid stream) to 80° (flat spray), Replacement orifices are available for replacement or flow rate adjustment.

The IInterpump Multireg 99 High-Low Nozzle features :

3 000 psi Max. Pressure
5.5 gpm Max. Flow
140° F Max. Temperature
1/4" BSP-F Inlet
High-Low Adjustable
8 oz. Weight

Product No.	Size	Colour
MREG991.30	03	Orange
MREG991.35	035	Dark Blue
MREG991.40	04	Red
MREG991.45	045	Yellow
MREG991.50	05	Light Blue
MREG991.55	055	White
MREG991.60	06	Black
MREG991.65	065	Purple
MREG991.70	07	Brown
MREG991.75	075	Neutral
MREG991.80	08	Green

More Details

Interpump VARJET Variable Nozzle

The Interpump VARJET Variable Nozzle features a spray pattern of 0° (solid stream) to 80° (flat spray), Replacement orifices are available for replacement or flow rate adjustment.

The Interpump VARJET Variable Nozzle features:

3 000 psi Max. Pressure
5.5 gpm Max. Flow
284° F Max. Temperature
1/4" BSP-F Inlet
Variable Spray Adjustment
3.2 oz. Weight

Product No.	Size	Colour
VARJET1.35	035	Dark Blue
VARJET1.40	04	Red
VARJET1.45	045	Yellow
VARJET1.50	05	Blue
VARJET1.60	06	Black

More Details

Replacement Orifices for Interpump Nozzles

The Replacement Orifices for Interpump Nozzles is for use with the Interpump MultiReg, VarioJet, Rototek and RotoMax Multi-Function Nozzles.

Product No.	Size	Colour
98661500I	03	Orange
98663200I	035	Dark Blue
98667400I	04	Red
98669000I	045	Yellow
98672500I	05	Light Blue
98675600I	055	White
98678000I	06	Black
98682000I	065	Purple
98691500I	07	Brown
98693500I	075	Neutral
98696300I	08	Green

More Details

Interpump SBH Sandblasting Nozzles

Interpump SBH Sandblasting Nozzles Features:

1 000 psi to 3 000 psi Rated Pressure
2.1 to 13.2 gpm Flow
Sand requirement : 95 to 177 lbs/hr
1/4" BSP-F inlet
Tungsten carbide internal nozzle and body
Water flow draws sand into spray
Suitable for dry, sifted, quarts or silica sand
Includes sand poker (part # 10704701I)
Repair kit : 25081542P
Weight : 9.0 0z

Product No.	Nozzles	Repair Kit
SBH0	1.50 mm	10014166I
SBH1	1.60 mm	10013366I
SBH2	1.70 mm	10013466I
SBH3	1.85 mm	10013566I
SBH4	2.10 mm	10014066I
SBH5	2.30 mm	10033066I

More Details

Interpump Rotomax with Variable Jet Nozzle

The Interpump Rotomax with Variable Jet Nozzle features a spray pattern of 0° (solid stream) to 80° (flat spray), Replacement orifices are available for replacement or flow rate adjustment.

The IInterpump Rotomax with Variable Jet Nozzle features :

3 500 psi Max. Pressure
5.5 gpm Max. Flow
176° F Max. Temperature
1/4" BSP-F inlet
High-Low Adjustable Nozzle
9.2 oz Weight

Product No.	Size	Colour
ROTOMAX1.40	04	Red
ROTOMAX1.50	05	Light Blue
ROTOMAX1.60	06	Black

More Details

PA HL280 Variable Nozzle

The PA HL280 Variable Nozzle features:

4050 psi Rated Pressure
Up to 8.0 gpm
195°F Max. Temperature
1/4" BSP-F inlet
Variable nozzle with high low pressure setting
Weight : 8.0 0z

Product No.	Size
HL28002	02
HL280025	025
HL28003	03
HL280035	035
HL28004	04
HL280045	045
HL28005	05
HL280055	055
HL28006	06
HL28009	09
HL280012	12

More Details

PA UR12 Rotating Nozzle

The PA UR12 Rotating Nozzle features:

1 725 psi Rated Pressure
Up to 23.0 gpm
212° F Max. Temperature
1/4" BSP-F inlet
Minimum operating pressure 435 psi

Product No.	Size	Description
UR12025	025	Rotating Nozzle
UR1203	030	Rotating Nozzle

More Details

PA UR20 Rotating Nozzle

The PA UR20 Rotating Nozzle features:

3 000 psi Rated Pressure
194° F Max. Temperature
1/4" BSP-F inlet
Weight 11.8 oz.

Product No.	Size	Repair Kit
UR2002	02	25192424P
UR2003	03	25178824P
UR20035	035	25173424P
UR2004	04	25173324P
UR20045	045	25178424P
UR2005	05	25178524P
UR20055	055	25178624P
UR2006	06	25174724P
UR20065	065	25178724P
UR2007	07	25178924P<

More Details

PA UR20 Rotating Nozzle

The PA UR20 Rotating Nozzle features:

3 000 psi Rated Pressure
194° F Max. Temperature
1/4" BSP-F inlet
Weight 11.8 oz.

Product No.	Size	Repair Kit
UR2002	02	25192424P
UR2003	03	25178824P
UR20035	035	25173424P
UR2004	04	25173324P
UR20045	045	25178424P
UR2005	05	25178524P
UR20055	055	25178624P
UR2006	06	25174724P
UR20065	065	25178724P
UR2007	07	25178924P<

More Details

PA UR36 Stainless Steel Rotating Nozzle

The PA UR36 Stainless Steel Rotating Nozzle features:

5 250 Max. Pressure
2 600 Min. Pressure
212 F Max. Temperature
2.4 - 9.00 gpm Flow
1/4" BSP-F Inlet

Product No.	Description	Repair Kit
UR3603	03	25141030P
UR3604	04	25141040P
UR3605	05	25141050P
UR3606	06	25141060P
UR3607	07	25141070P
UR3608	08	25141080P

More Details

Interpump RMAX750 Stainless Steel Rotating Nozzle

Interpump RMAX750 Stainless Steel Rotating Nozzle Features:

Stainless Steel Professional Nozzle
10,800 psi Max. Pressure
13.2 gpm Max. Flow
140 F Max. Temperature
1/2" or 3/8" BSP-F Inlet
Stainless Steel Construction
Made of Tungsten Carbide
35.3 oz. Weight

Product No.	Description
ROTOMAX7501.10	1.10 Nozzle Size
ROTOMAX7501.35	1.35 Nozzle Size
ROTOMAX7501.55	1.55 Nozzle Size
ROTOMAX7501.80	1.80 Nozzle Size
107395011	1.10 Replacement Nozzle
107396011	1.35 Replacement Nozzle
107397011	1.55 Replacement Nozzle
107400011	1.80 Replacement Nozzle

More Details

Interpump ANH2 Adjustable Nozzle Holder

The Interpump ANH2 Adjustable Nozzle Holder accommodates a high pressure nozzle. Rotating the knob allows water to bypass the tip activating a down stream injector.

The Interpump ANH2 Adjustable Nozzle Holder Features:

3 000 psi Max. Pressure
5.5 gpm Max. Flow
140° F Max. Temperature
1/4" BSP-F Inlet
1/4" BSP-F Outlets
3.0 oz. Weight

Product No.	Description
ANH2	Nozzle Holder

More Details

PA RSN Double Nozzle Holder

The PA RSN Double Nozzle Holder features:

2 900 psi Max. Pressure
10.5 gpm Max. Flow
1/4" BSP-F Inlet
1/4" NPT-F Outlets (2)
Holds two nozzles. One for low-pressure soap and one for high pressure rinse.

Product No.	Description
RSN	Nozzle Holder

More Details

PA ASN Adjustable Nozzle Holder

The PA ASN Adjustable Nozzle Holder accommodates a high pressure nozzle. Rotating the knob allows water to bypass the tip activating a down stream injector.

The PA ASN Adjustable Nozzle Holder features:

3 600 psi Max. Pressure
8.0 gpm Max. Flow
320° F Max. Temperature
1/4" NPT-F Inlet
1/4" NPT-F Outlets

Product No.	Description
ASN	Nozzle Holder (black)

More Details

Interpump DNH Double Nozzle Holder

The Interpump DNH Double Nozzle Holder Features :

3 000 psi Max. Pressure
5.5 gpm Max. Flow
1/4" BSP-F inlet
1/4" BSP-F outlets (2)
Holds two nozzles one for low pressure soap and one for high pressure rinse

Product No.	Description
DNH	Nozzle Holder

More Details

Flat Fan PVDF Nozzles

Features:

500 psi Max. Pressure
Chemical resistant polyvinylidene flouride polymer (PVDF)
One piece male 1/4" or 1/8" NPT connections

Product No.	Description
90A2CME*	1/4" NPT Nozzle
90A1CME*	1/8" NPT Nozzle
* Specify Orifice Size - 01, 015, 02, 025, 03, 04, 05, 07, 08, 09, 10, 14, 15, 20, 30, 40 & 50
** Specify Spray Angle - 0, 15, 25, 40, 65, 80, 95, 110

More Details

PA GS3 Three-Way Nozzle

The PA GS3 Three-Way Nozzle features:

3 200 psi Max. Pressure
10.5 gpm Max. Flow
175° F Max. Temperature
1/4" BSP-F Inlet
Variable Nozzle with High-Low Pressure Setting
8.8 oz. Weight

Product No.	Size	Repair Kit
25080045P	045	25080751P
25080055P	055	25080651P
25080060P	06	25080551P

Product No.	Description
25080060P	Repair Kit

More Details

PA UR1 Rotating Nozzle

The PA UR1 Rotating Nozzle features:

5 100 psi Max. Pressure
8.0 gpm
175° F Max. Temperature
Anti-wear SS pin with brass body and shock proof plastic protection
1/4" NPT-M

Product No.	Description
UR1030	Rotating Nozzle 03 Orifice
UR1035	Rotating Nozzle 035 Orifice
UR1040	Rotating Nozzle 04 Orifice
UR1045	Rotating Nozzle 045 Orifice
UR1050	Rotating Nozzle 05 Orifice
UR1060	Rotating Nozzle 06 Orifice
UR1090	Rotating Nozzle 09 Orifice

More Details

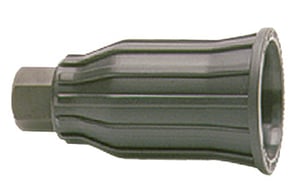

PA UR3 Rotating Nozzle

The PA UR3 Rotating Nozzle features:

7 250 psi Max. Pressure
8.0 gpm Max. Flow
175° F Max. Temperature
Anti-wear SS pin with Brass Body and Shock Proof Plastic Protection
1 or 2 Nozzle Design
1/2″ BSP-F
1/2″ BSP-F

Product No.	Description
UR3035	Rotating Nozzle 1 Nozzle Design 035 Orifice
UR3045	Rotating Nozzle 1 Nozzle Design 045 Orifice
UR3055	Rotating Nozzle 1 Nozzle Design 055 Orifice
UR3060	Rotating Nozzle 1 Nozzle Design 060 Orifice
UR3050-2	Rotating Nozzle 2 Nozzle Design 050 Orifice
UR3060-2	Rotating Nozzle 2 Nozzle Design 060 Orifice
UR3070-2	Rotating Nozzle 2 Nozzle Design 070 Orifice
UR3080-2	Rotating Nozzle 2 Nozzle Design 080 Orifice
UR3010-2	Rotating Nozzle 2 Nozzle Design 010 Orifice
UR3012-2	Rotating Nozzle 2 Nozzle Design 012 Orifice

More Details

Spray Nozzles

Filter Further

Features:

Features:

Features:

The PA A42R Self-Propelled Tank Cleaner features:

The PA A42R360 Self-Propelled Tank Cleaner features:

PA A300R High-Volume Self-Propelled Tank Cleaner

PA M21E Electric Barrel Cleaner

PA MI63 Hydraulic Tank Cleaner

Features:

Features:

Features:

Features:

Features:

Features:

Vibrating/Rotating Sewer Jetting Nozzles 3 625 psi

TND - TURBO Nozzle Driver

DMND - Dual Meg Nozzle Driver

Features:

Features:

Features:

Features:

PA TS8250 Sand Blasting Kit

PA Drain Cleaning Nozzles

High Pressure Drain Cleaning Nozzle Kits

Button Nose "BN" Drain Cleaning Nozzles 10 000 psi

Jet Nose "JN" Drain Cleaning Nozzles 10 000 psi

PA MI63 Hydraulic Driven Tank Cleaner

PA M63E / M63P Self-propelled Tank Cleaner

PA A42FR2 Tank Cleaning Head

PWQC15045 Nozzle

PWQC0045 Nozzle

Features:

Features:

Features:

Features:

Features:

Features:

Features:

Features:

Interpump Multireg 99 High-Low Nozzle

Interpump VARJET Variable Nozzle

Replacement Orifices for Interpump Nozzles

Interpump SBH Sandblasting Nozzles

Interpump Rotomax with Variable Jet Nozzle

PA HL280 Variable Nozzle

PA UR12 Rotating Nozzle

PA UR20 Rotating Nozzle

PA UR20 Rotating Nozzle

PA UR36 Stainless Steel Rotating Nozzle

Interpump RMAX750 Stainless Steel Rotating Nozzle

Interpump ANH2 Adjustable Nozzle Holder

PA ASN Adjustable Nozzle Holder

Interpump DNH Double Nozzle Holder

Features:

PA GS3 Three-Way Nozzle

PA UR1 Rotating Nozzle

PA UR3 Rotating Nozzle
